Injektor Dosing Pump
Multi-Use System For Dispersing Chemical And Dropping Dust

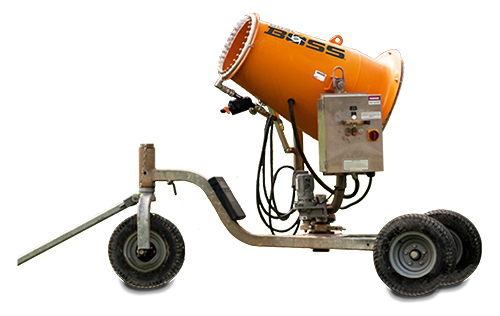

The small DustBoss® cannon, the DB-30, is paired with a dosing pump to inject chemical into the water flow, creating the DB-30 Injektor™ a multi-purpose dust control system.
Active DustBoss DB-30 systems can be retrofitted to become an Injektor unit and function as a multi-purpose machine.
Available nozzle variations allow for lower flow rates while maintaining excellent atomization for the airborne water mixture.
Specifications:
- Throw: 100 ft (30 m).
- Standard 70° oscillation coverage: 6,100 sq ft (566 sq m).
- Optional 359° oscillation coverage: 31,000 sq ft (2,880 sq m).
- Water usage: 4.9 gpm (18.5 lpm) to 9.8 gpm (37.1 lpm).
- Direct-drive motor.
- Standard mount: Three wheeled carriage.
- Adjustable throw angle: 0° to 50°.
- Warranty: 3 year / 3,000 hour.
- Adjustable stroke frequency between 1 stroke/hour to 100 strokes/minute.
