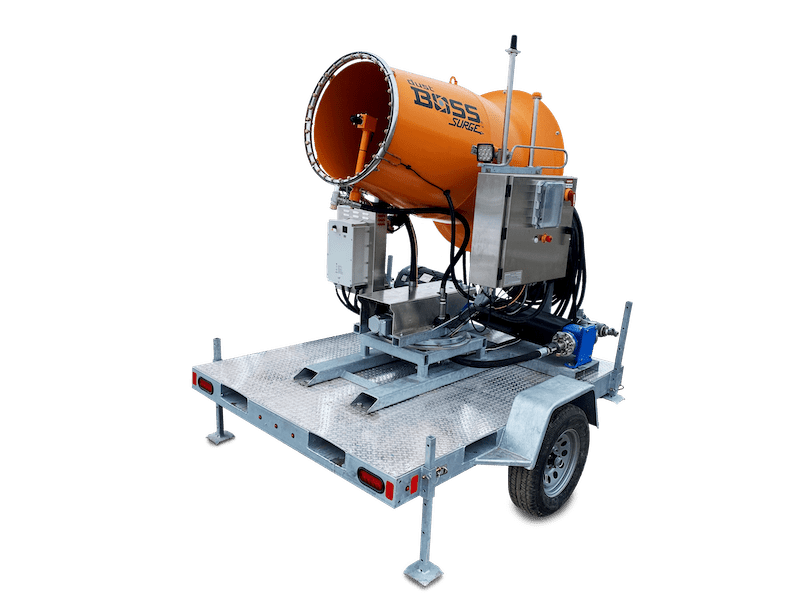

Dustboss Surge® Center Nozzle
Surge Through Tough Winds
The new DustBoss® Surge® center nozzle applies high-powered jets of water to dust control. Combined with cutting-edge updates to the DustBoss system, Surge center nozzle technology provides a dust management solution designed to fight through the elements and reach high-rising dust.
With the ability to instantly change spray patterns from a jet stream to fog dispersion, the center nozzle stops dust at high locations and any attempting to migrate around and off-site.
This machine is designed with a multi-step system delivering versatile flow levels using the center nozzle and outer misting ring. Advanced controls allow custom oscillation ranges to be easily inputted with a few pushes of a button.
Specifications:
- Throw: 200 ft (60 m).
- Standard 260° oscillation coverage: 90,757 sq ft (8,432 sq m).
- 3-Stage Operation:
- Stage 1: (Outer Spray Ring) 17-43 gpm.
- Stage 2: (Center Nozzle) 30-75 gpm.
- Stage 3: (Both Ring & Nozzle) 42-110 gpm.
- Full system control via newly added remote.
- Remote range: Operates within 1,000 ft of unit.
- VFD for controlling throw performance at lower PSI.
- Direct-drive motor.
- Standard mount: Two wheeled trailer.
- Additional options available.
- Warranty: 3 year / 3,000 hour.
Ask Us About:
- Recommendations on using non-potable water.
- Fusion systems with onboard power source.
- Alternative mounts, including towers and skids.
- Quick Release Manifold for easy nozzle maintenance.
